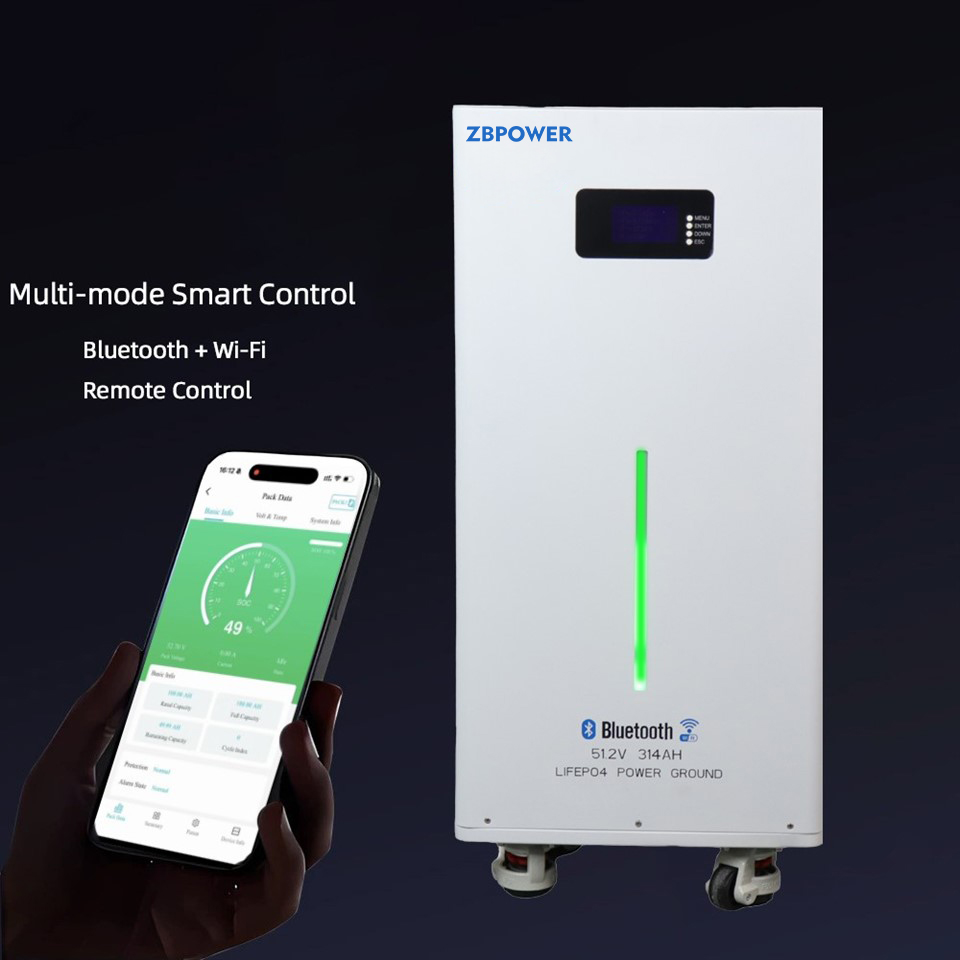

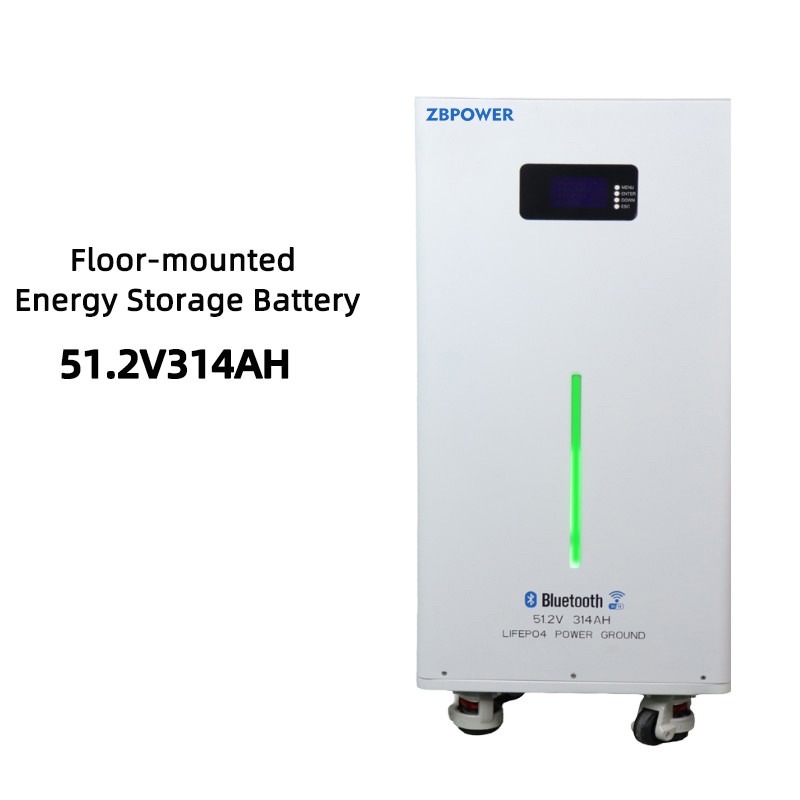

51.2V314AH Floor-mounted Energy Storage Battery

Boasting core strengths of high integration, large capacity, flexible mobility, top-tier safety and smart operation, our floor-mounted battery is the perfect pick for household energy upgrade. It fulfills daily power needs, handles emergencies seamlessly, and strikes a perfect balance between cost-effectiveness and eco-friendliness — that’s why it’s gaining popularity among more and more families.
Consult now

Details:

Specification 51.2V314AH
Rated Voltage 51.2V
Rated Capacity 314AH
Rated Energy 16.18KWh

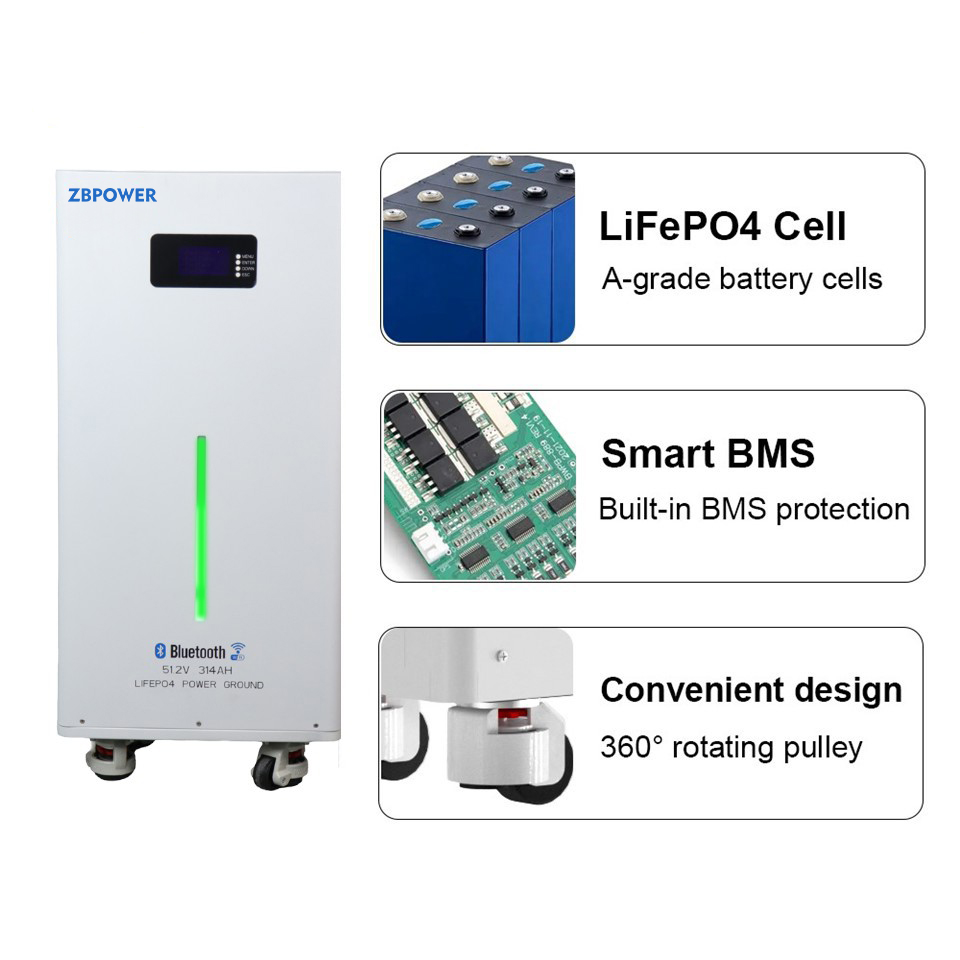

Cell Typ LiFePO4
Composition 16S1P
Working Voltage Rang 43.2V-57.6V
Output Power BMS 300A Max:16.08KW
Max Charge Current Max:200A
Max Discharge Current Max:200A
Display LCD Display Screen
Communication Interface RS485,RS232,CAN
BMS Protection Function Overcurrent,Overvoltage,Overcharging,Overdischarge,Short Circuit,Over-temperature,etc

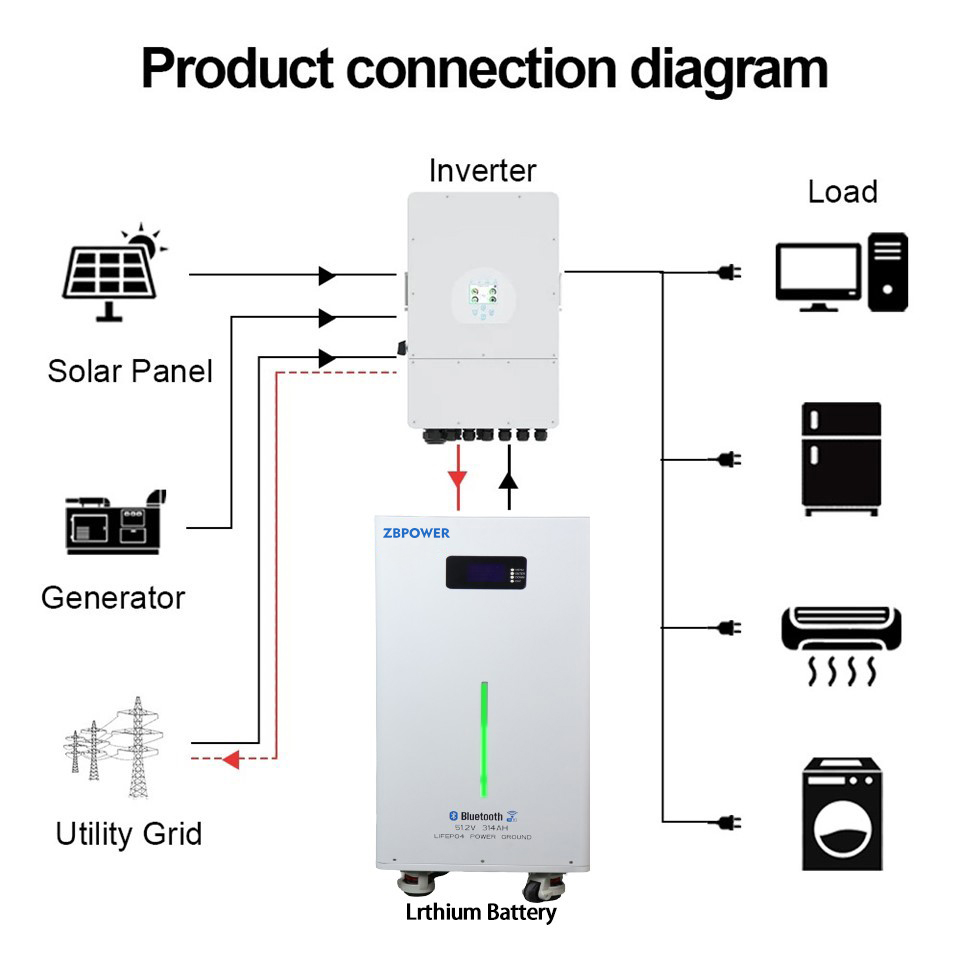

Compatible Inverters DEYE /Afore /MEGAREVO/SOLIS/Growatt /LUXPOWER/Voltronics
Goodwe/SMA/Victron/SOROTEC/MUST/etc.
Change Temperature 0℃-45℃
Dischange Temperature -20℃-65℃
Storage Temperature -10℃-45℃
Cooling Method Natural Cooling
Design Life 10 years
Cycles 6000@25℃ /0.5C/80%DOD
Battery Size(WxDxH) 900*420*260mm
Weight 119Kg
Size and Weight for reference only
